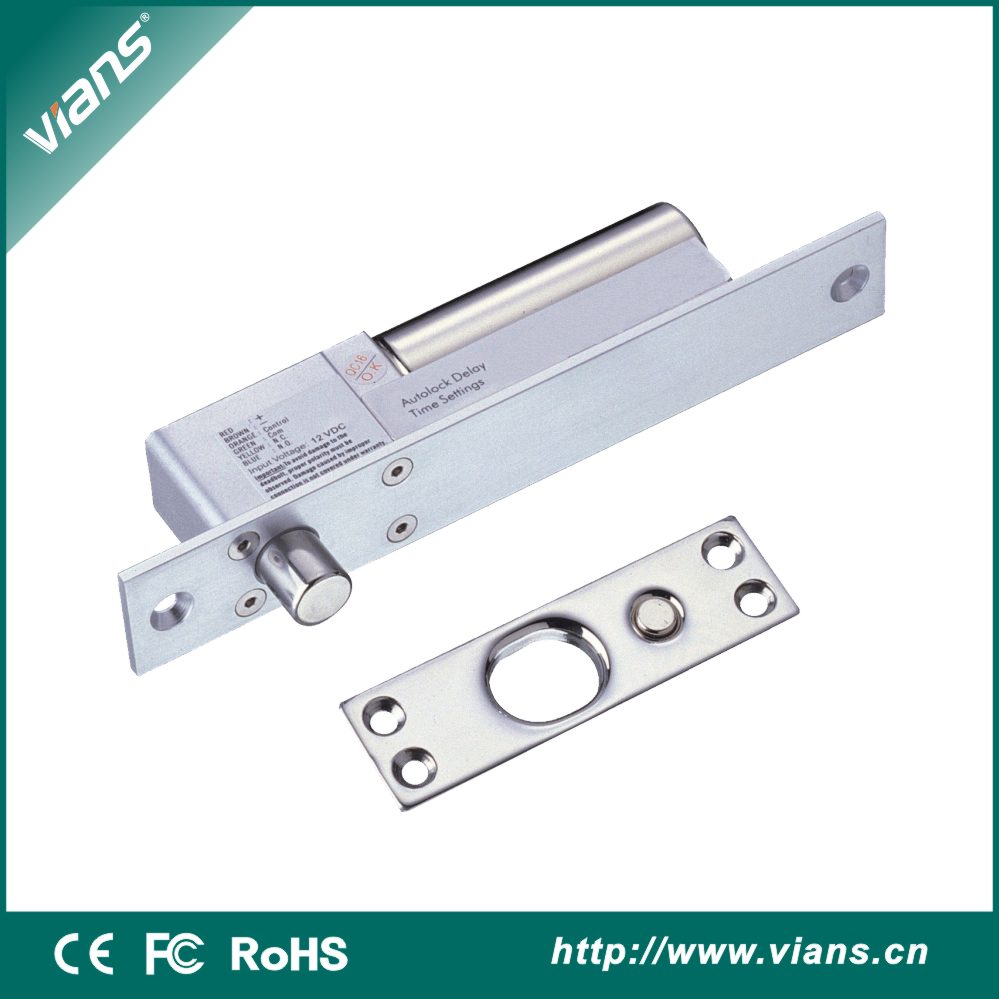

VIANS Electric Deadbolts are an ideal locking mechanism for Access Control applications requiring "Fail
Safe" operation. These Dead-bolts are made out of Heavy duty steel
and aluminum. using the
microprocessor chip to control electric circuit, so it decreases
the power consumption and really has the
ultralow temperature function. After 500 000 times of test, we can assure you that our locks are more
stable, more environmentally friendly and durable. Electric Bolt
lock was designed mainly for glass door,
wooden door and metal door, it is suitable for bidirectional door
and sliding door, it is also the best choice
for access control automation management.
1. Suitable for all kind of the door
2. With low power, environmental protection
3.Time delay function: 0/3/6/9sec
4. Operating voltage: 12VDC +10% range
5. Starting current: 1200mA (start the moment)
6. Current:120mA (fully locked)
7. Cylinder strength: Hardened stainless steel solid lock core,under
1000kg pressure
8. Select door type: wooden doors, glass doors, metal doors, fire
doors
9. Signal output: Door state signal output NO, NC, COM contacts
10. Lock body surface temperature: low temperature
11. Door magnetic induction distance: 8mm (only used reed all U.S.
imports)
12. Use the ambient temperature: -10°C-55°C (14 ~ 131F)
13. Use environment humidity: 0 ~ 90% relative humidity
14. Electric locking and durable design: design professional magnetic
materials, 50 million times durability
Electric Bolt Advantages:
Low Temperature, safe and Durable.
Low Power, Environmental Protection.
Special photoelectricity control
Long Life with 500,000 Operations.
MOV Provides Reverse Current Protection.
Superior Strength Aluminium Alloy, Solid Stainless Steel Bolt.
Double protection for loading current.
Photoelectricity Control, Low Temperature:
A:Low Electric Current changes immediately;
B:When door frame doesn't coincide with door leaf, door leaf
against the bolt, the electric bolt will start the low-power
function to bring low temperature.
C:Photoelectricity Control Technology, prevent mechanical defect
