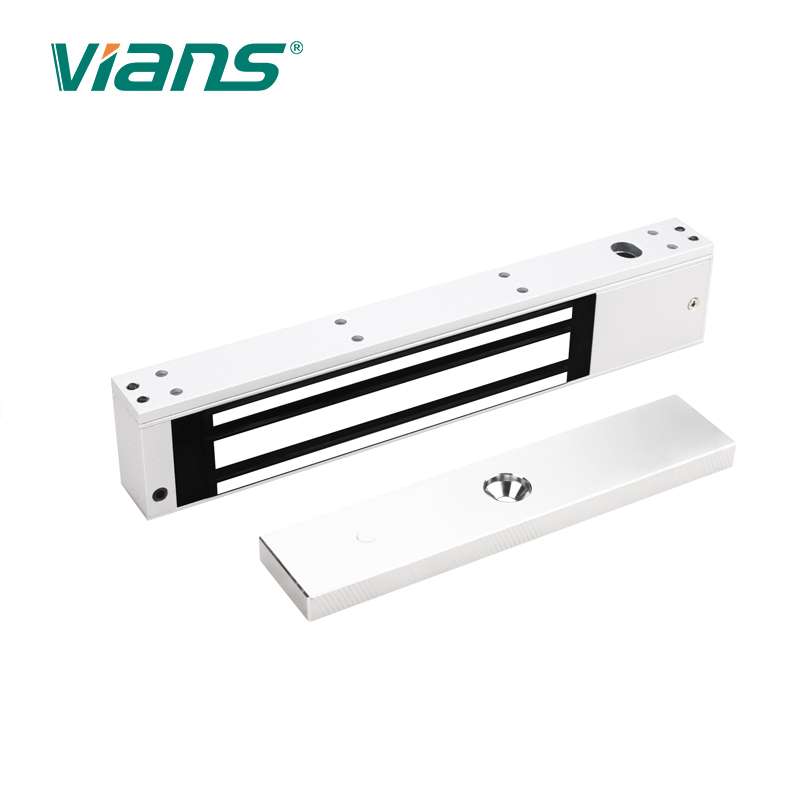

Single Door Access Control 280kgs Electric Magnetic Lock
Access Control Electric Magnetic Lock 600LBS EM Lock for Single
Door with Signal
Vians EM Locks Introduction :
Vians electric magnetic locks adopt international leading
production equipment ,which not only makes our locks' antioxidant
capacity of the surface reach the international leading level ,also
helps to increase the holding force .Vians EM lock used anti-wear
manufacturing materials , the anti residual magnetism design avoid
mechanical failure .
Specification
| Product Parameter | Parameter Description |
| Product Name | Electric magnetic lock/EM LOCK |
| Size | 250*47*26(mm) |
| Armature Plate Dimension | 180*38*11(mm) |
| Holding Force | 600lbs 280kgs |
| Input Voltage | DC12V /DC24V optional |
| Current | 480mA or 240mA |
| Surface Temp | ≤+20℃ |
| Operating Temp | -10~+55℃(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Signal type output | Lock signal output(Door sensor optional) |
| Material | Aluminum alloy |
| Security Type | Fail Safe |
| Weight | 2.1 KG
|
Main features :
- Use pure copper coil
- Full holding force
- Suit for wooden/ glass/ metal/ fireproof door.
- The most hot sale holding force of 280kgs/ 600Lbs.
- Lock signal output function
- Superior quality with certifications of CE/ROHS/FCC/MA.
- Anti risidual magnetism design.
- High-strength alluminum housing of anodizing finish.
- Adjustable Voltage 12V or 24VDC .
- Built-in reverse current protection device.
Detail photos
Company Profile
Our Vians is one of the leading professional electric lock
manufactures in China,which was established in 2007. We are
dedicated to Magnetic Lock,Electric Bolt Lock,Electric
Strike,Electric Rim lock and Exit button and so on. All our
products are independent design,development and production and
passed CE ,MA certification and related quality inspection. So far
our products have been exported to more than 60 countries and
regions which are widely used in airport,subway,bank,prisons
,intelligent Building and community .
FAQ
Q: Do you produce this maglocks by your own factory?
A: Yes,maglocks is one of our pruduction lines. Our factory is
located in Dongguan City close to Shenzhen.
Q: How much does it cost to ship to my country?
A: Please tell us your receive goods address, we will check the
shipping cost for your reference
Q: Does this product come with retail package?
A: We have declared the packing detail on the description of each
product, please check it, thank you!
Q: I am a reseller,I would like to buy many pieces of your item,
what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large
quantity, please send email to us, we will give you the best price,
thanks!
