Customized Color 24V 280KG 600lbs Electromagnetic Door Lock
Product Overview:
The design of the magnetic lock is the same as that of the
electromagnet. When the current passes through the silicon steel
sheet, the electromagnetic lock will produce a strong suction force
and tightly attract the iron plate to lock the door. As long as a
small current electromagnetic lock will produce a huge magnetic
force, the access control system that controls the power of the
electromagnetic lock will cut off the power after identifying the
correct personnel, and the electromagnetic lock can open the door
after it loses its suction. Because the electromagnetic lock has no
complicated mechanical structure and the structure of the bolt, it
is suitable for the passage control of the escape door or the fire
door. The lock body is protected by pouring epoxy resin inside.
Features:
1, With access control system use together.
2, With strong holding force 280kg 600lbs.
3, Neutral version and OEM version.
4, Best materials, with pure core wires.
5, With Anti residual magnetism design
6, 5 years warranty of magnetic lock
Specification of 600lbs EM Lock:
| Product Parameter | Parameter Description |
| Lock Size | 250L*47W*26H(mm) |
| Armature Plate Dimension | 180L*38W*11H(mm) |
| Holding Force | 280kg(600Lbs) |
| Signal output | NO |
| Input Voltage | DC12V or DC24V |
| Working Current | 12V/480mA 24V/240mA |
| Door Type Applicable | Wooden door , Glass door ,Metal door , Fireproof door |
| Time Delay | NO |
| Security Type | Power off to open |
| Weight | 2kg |

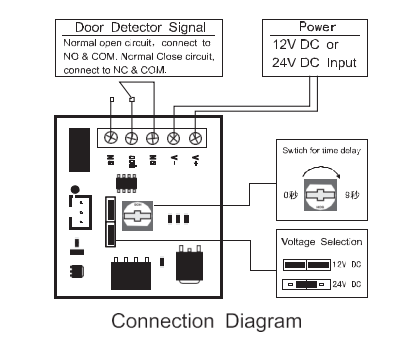

Wiring of Electromagetic Lock:
1. 12V-DC input:
Positive pole of 12V-DC connect to the terminal marked with "+"
Negative pole of 12V-DC connect to the terminal marked with "-"
Ensure the Voltage Selector is switched to 12V-DC.
2. 24V-DC input:
Positive pole of 24V-DC connect to the terminal marked with "+"
Negative pole of 24V-DC connect to the terminal marked with "-"
Ensure the Voltage Selector is switched to 24V-DC. 3. Wiring of Door-State Detector
The overload current of relay contact is 1 amp, when the input is
24V- DC, overload is strictly prohibited. Connect the normal-open
circuit to the COM and NC for getting switch-over signal. But
connect the normal- close circuit to the COM and NO for getting
switch-over signal.
Note: Please use the 12V-DC input if the lock has not special
annotate.The overload voltage will damage the lock |
|
Product details:
